1.0           Setup SSL VPN site to site tunnel

Site to site VPNs connect two locations with static public IP addresses and allow traffic to be routed between the two networks. This is most commonly used to connect an organization’s branch offices back to its main office, so branch users can access network resources in the main office.

Before you start

Before starting with the configuration of an OpenVPN SSL tunnel you need to have a working activeARC^® installation with a unique LAN IP subnet for each side of your connection (your local network needs to be different than that of the remote network).

Note

For the sample we will use a private IP for our WAN connection. This requires us to disable the default block rule on WAN to allow private traffic. To do so, go to Interfaces ‣ [WAN] and uncheck “Block private networks”. (Don’t forget to save and apply)

Sample Setup

For the sample configuration we use two activeARC® boxes to simulate a site-to-site tunnel, with the following configuration:

Network Site A













Site A - Server





Network Site B

Site B - Client

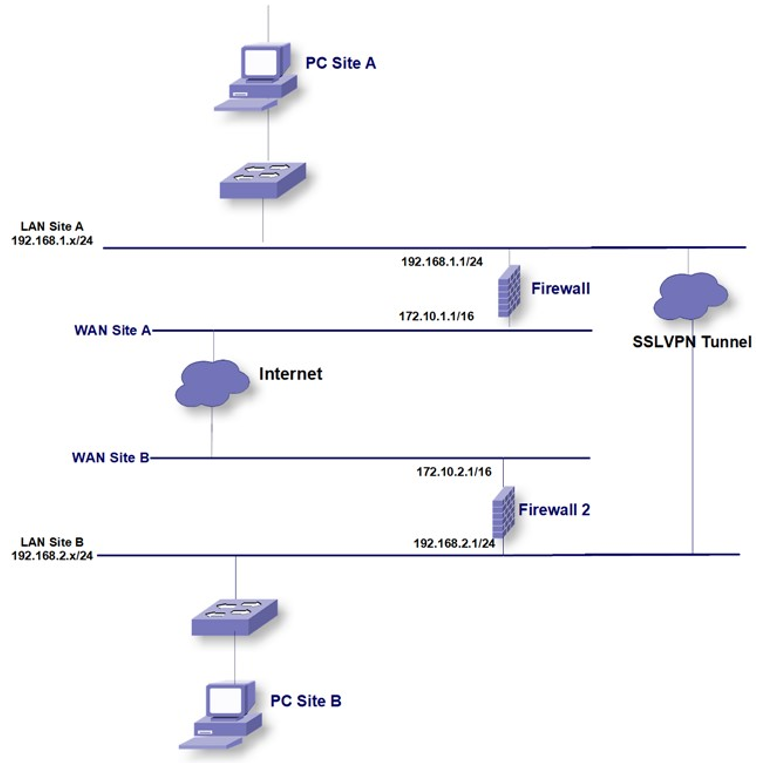

Full Network Diagram Including SSL VPN Tunnel



SSL VPN Site-to-Site tunnel network





2.0           Step 1 - Add SSL Server

Adding a new SSL VPN server is relatively simple. We’ll start by adding a server that uses a shared key. This setup offers a good protection and it is easy to setup.

Go to VPN ‣ OpenVPN ‣ Servers and click on click Add in the top right corner of the form.

For our example will use the following settings (leave everything else on its default):

Note

The setting Hardware Crypto is not used for new systems equipped with AESNI, when the aesni module is loaded it will be used automatically.

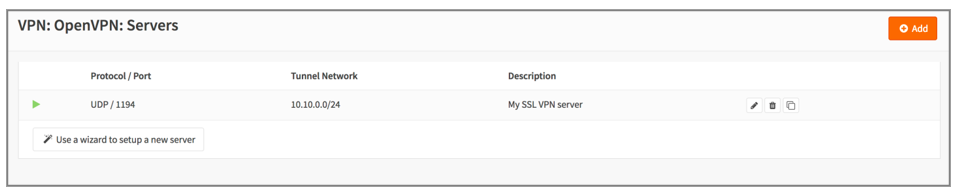

Click Save to add the new server.

3.0           Step 2 - Copy Shared Key

To copy the newly created shared key, click on the pencil icon next to the newly created SSL VPN server.

You will see the shared key, copy this and keep it safe!

Sample key:

#

# 2048 bit OpenVPN static key

#

-----BEGIN OpenVPN Static key V1-----

0960c87c3aafa8f306fe270c1564380b

7922543563a17b5d2636b4ef9412dd09

9ad44974ca1b293963e0f8ac9cbdd97c

2c31bf35f0df45c9e928ccb033e6d51d

2caaec02d649ad081c68d7bc7d28030e

9182c9597a83024097bea860e52d9c66

1b9e0048fbf951ce8659bc56edb7f9a1

14f7740fc9231a3750557e02eb112712

ac4b9980d4c740ec96a4357f3940ed90

d1bbf8eed3de135c886fe2eff8e8b943

ab1f52b59def4c9ebeacc5eb48425189

c43887a6237c29e0724f5f45a0f70635

10680bec8bfb67c21bf2b4866268594c

9ba093668064f9a898e6a6ad103b401d

b2047132f0dc8db2230db38444d689fa

ddba46bf6f892ae90c59415f94b82750

-----END OpenVPN Static key V1-----





4.0           Step 3 - Server Firewall Rules

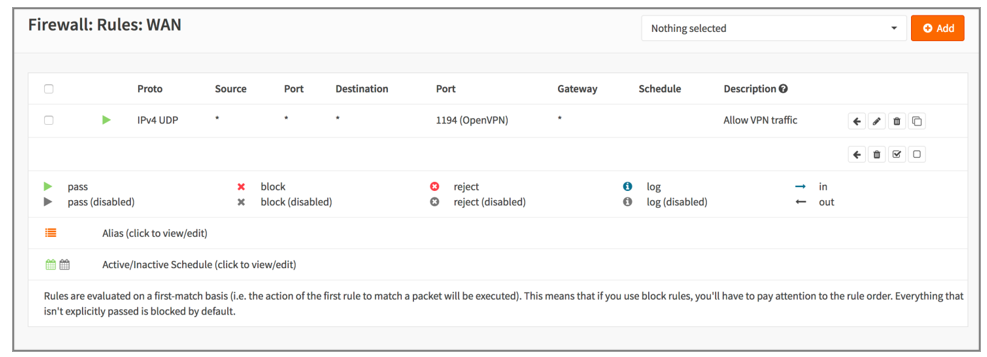

To allow SSL VPN client connections, we should allow access to the OpenVPN server port on the WAN interface. When using multiple servers, we need to open up each port. For our configuration we only use one server accessible on UDP port 1194.

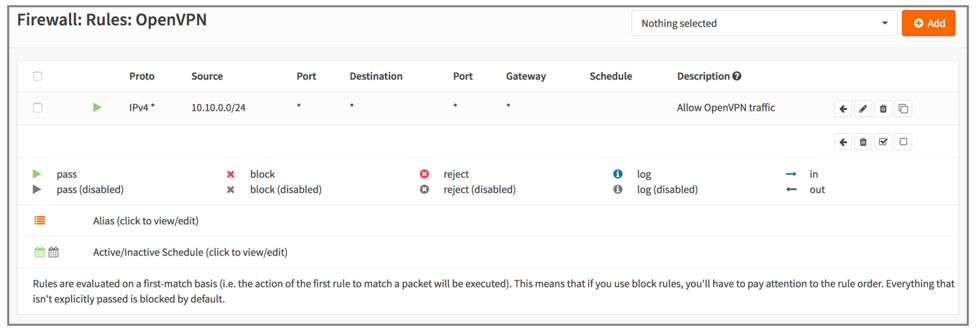

Next, we also need to allow traffic from the VPN client network (192.168.2.0/24). For our example we will allow client to access anything on our local network(s), however you may decide just to allow traffic to one or more IPs.



You are done configuring Site A.





5.0           Step 4 - Site B Client

Now we will have to setup the client. Login to the second firewall, go to VPN ‣ OpenVPN ‣ Clients and click on add client in the upper right corner of the form.

Now enter the following into the form (and leave everything else default):

Now click on Save to apply your settings.

The Connection Status can be viewed under VPN ‣ OpenVPN ‣ Connection Status



6.0           Step 5 - Client Firewall Rules

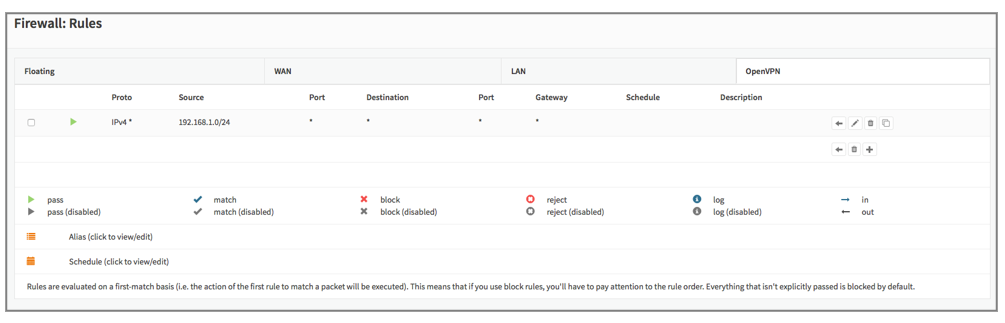

To allow traffic from the remote network just add a rule under Firewall ‣ Rules OpenVPN tab.



Completed
